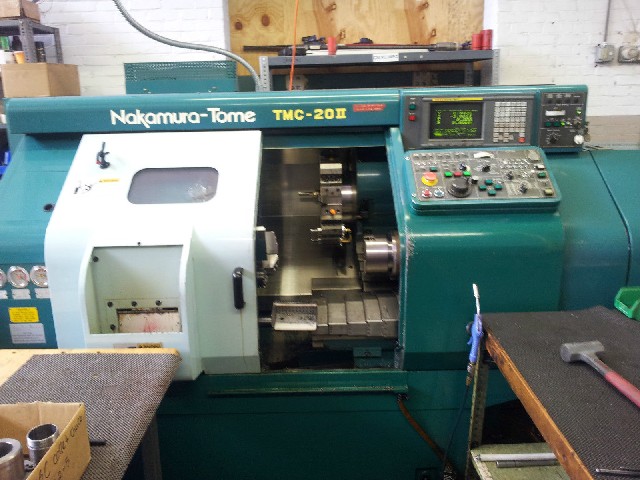

Nakamura Tome TMC-20II CNC Turning Center with Sub-Spindle
Nakamura Tome TMC-20II
Condition: Very Good
Stock Number: 6120
Click to view larger photo
Specification
Description
Swing Over Bed
15.75"
Max. Turning Dia.
11.02"
Dist Between Centers
18.07"
Maximum Bar
2"

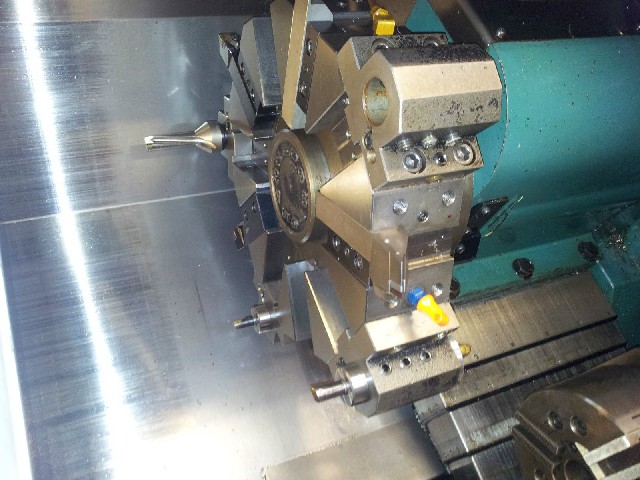

Number of Tool stations on Turret
10
Spindle Speed
4500 RPM
Spindle Nose
A2-5
Turret Positions
12 (6 Rotary)
Motor Power
10 HP
Equipped With:

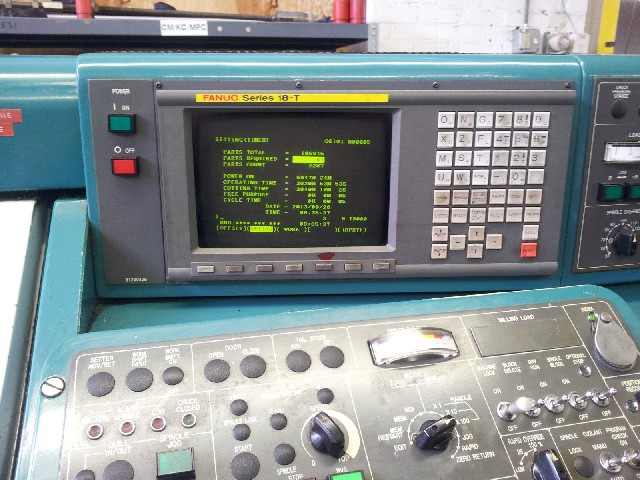

Fanuc Series 18-T CNC Control

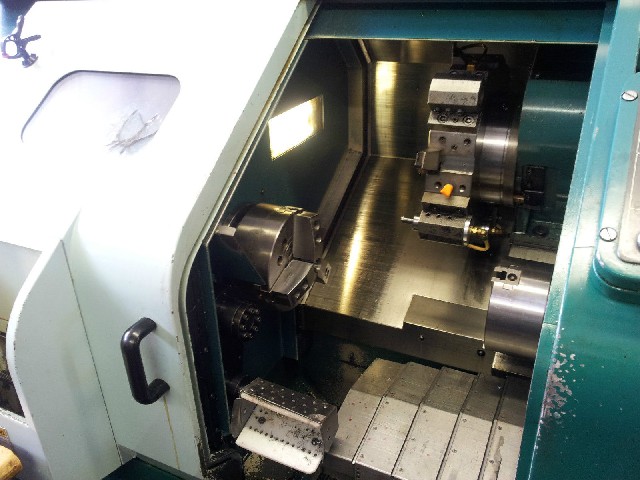

8" Chuck (Main)

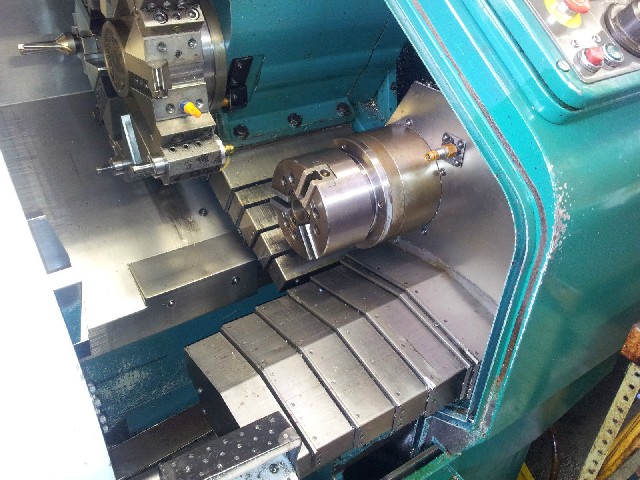

6" Chuck (Sub-Spindle)
Parts Catcher
Chip Conveyor
Cooljet high pressure system
All Available Tooling and Manuals
